Marca: Original

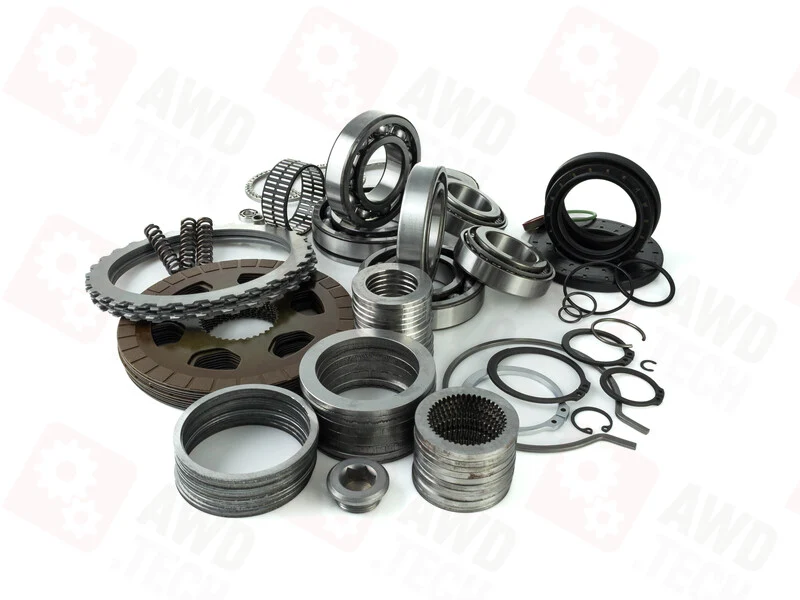

Repair Kit for ATC35L — BMW 1, 2, 3, 4, 5, 6, 7, X1
Descripción
Part Name: Repair Kit
OE numbers: Not available
Repair Kit application in transmissions
ATC35L BMW
* ATC35L Transfer Case used in BMW 1 2009-..., 2 2009-..., 3 2009-..., 4 2009-..., 5 2009-..., X1 2010-2015, 6 2009-..., 7 2009-...
OE Numbers of ATC35L Transfer Case where this Repair Kit is applicable: 27104603370 27105A371E8 27105A371E9 27105A371F0 27105A371F1 27105A371F2 27105A371F3 27107505374 27107505375 27107617503 27107619643 27107621378 27107622018 27107629172 27107629175 27107629176 27107629349 27107629521 27107629523 27107629524 27107631536 27107635757 27107635758 27107636174 27107636178 27107636483 27107636484 27107636485 27107636486 27107639262 27107639263 27107639269 27107639270 27107643754 27107643755 27107643756 27107643757 27107649181 27107649718 27107649725 27107649782 27107649783 27108604768 27108604769 27108612556 27108612557 27108623346 27108623347 27108643149 27108643150 27108662300 27108662968 27108697975

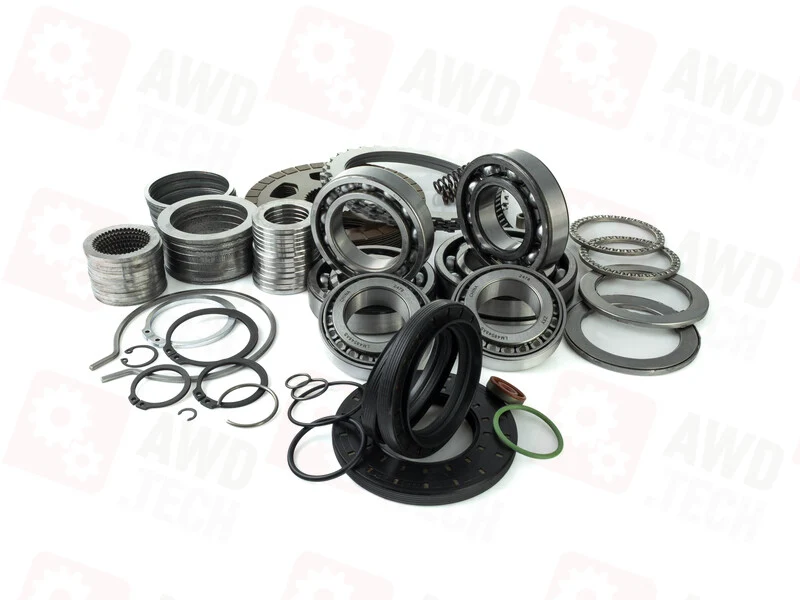

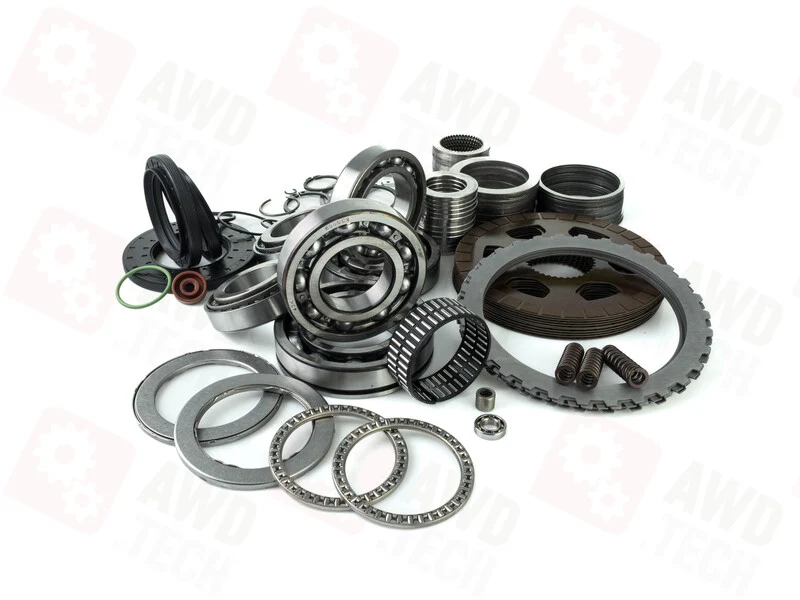

Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| 05 | Ball Bearing | 1 pc | 1 pc | ||

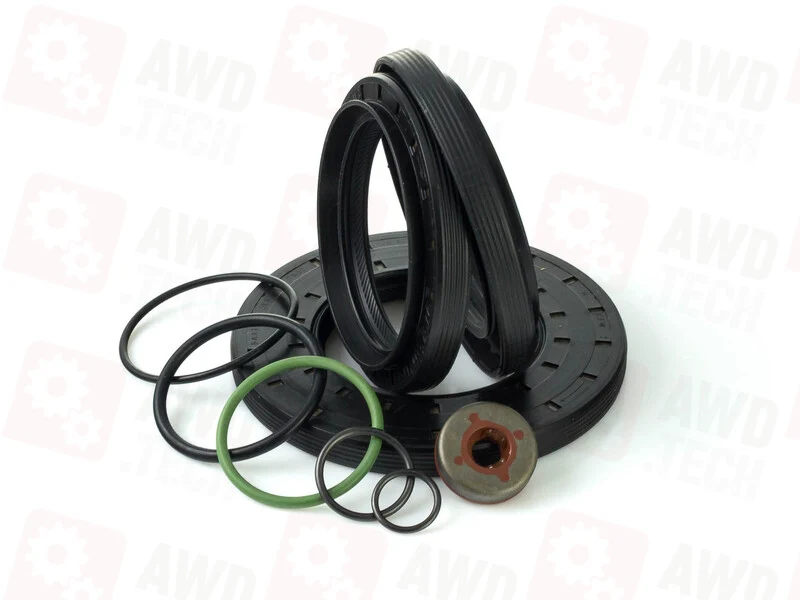

| 01 | O-ring | 02C2D27326, 27107609202 | 1 pc | 1 pc | |

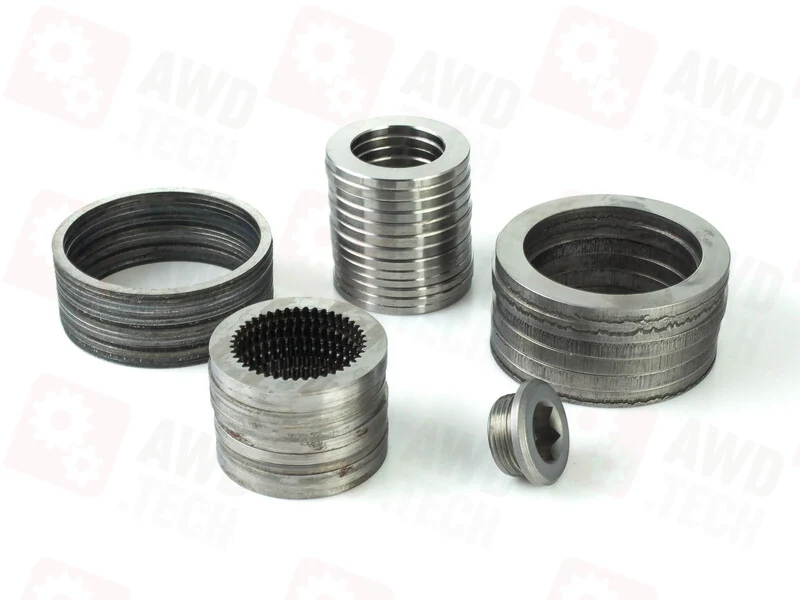

| K20 | Shim Set | 27107546670 | 1 pc | 1 pc | Contains 13 different Shims with Dimensions from 2.90mm up to 4.10mm |
| 37 | Seal O-ring | 27107599326, 6000626079, 673002346 | 1 pc | 1 pc | |

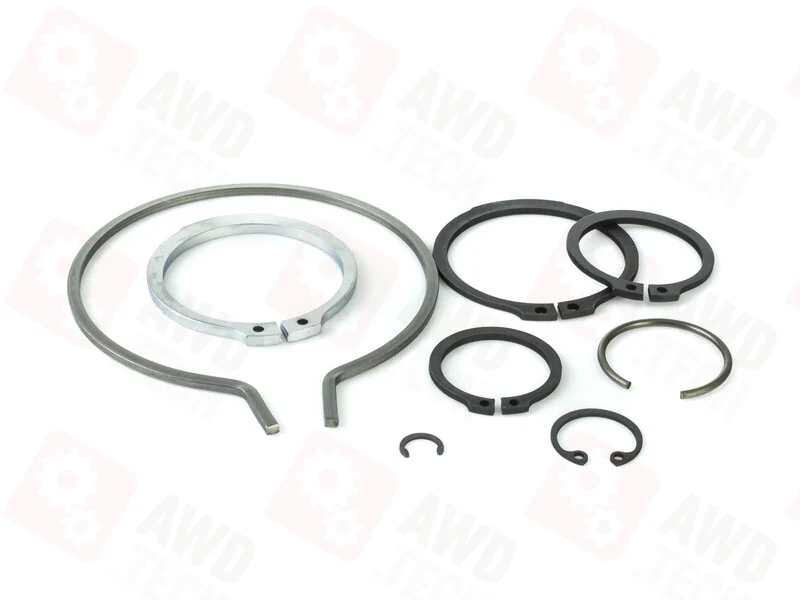

| 38 | Retaining Ring | 27107539525, 331381LA0A, 6000626080, 673002348 | 1 pc | 1 pc | |

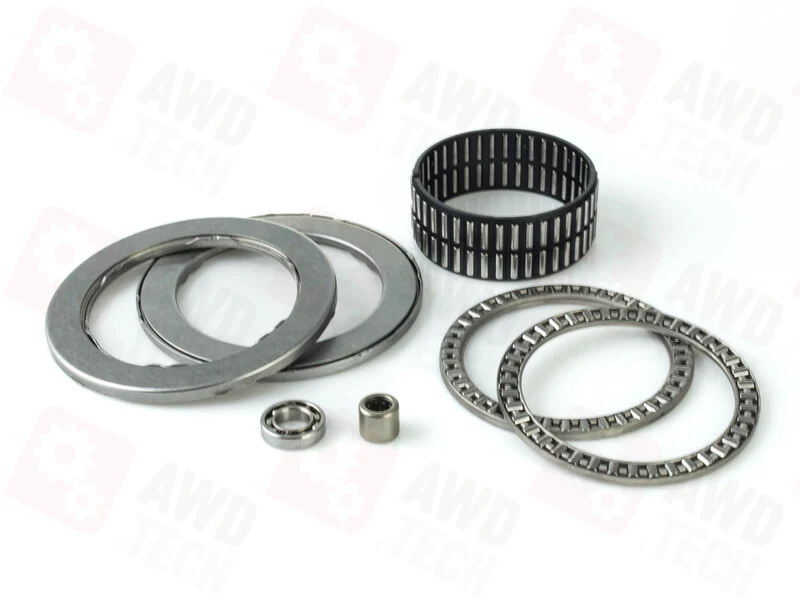

| 12 | Needle Bearing | 1 pc | 1 pc | ||
| 14 | Needle Bearing | 2 pcs | 2 pcs | ||

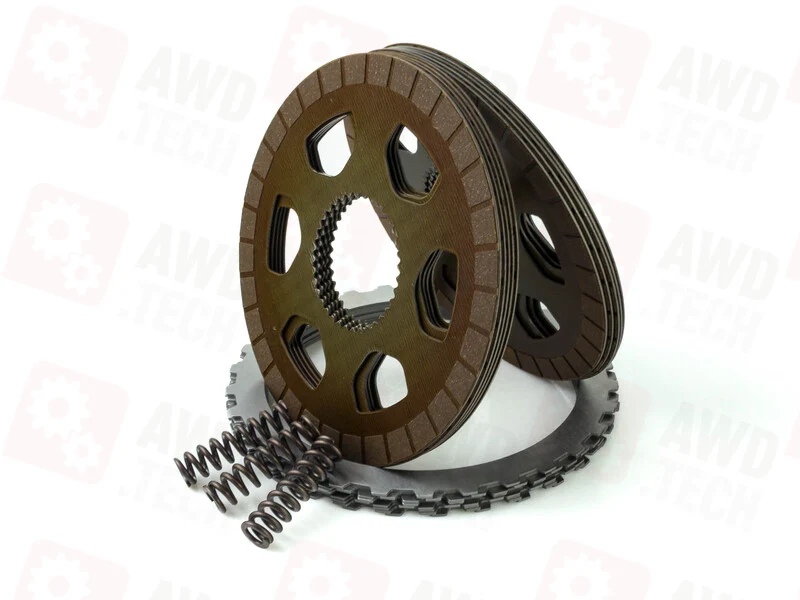

| 18 | Friction Plate | 10 pcs | 10 pcs | ||
| 19 | Steel Plate | 9 pcs | 9 pcs | ||
| 24 | Needle Bearing | 2 pcs | 2 pcs | ||
| 30 | Retaining Ring | 1 pc | 1 pc | ||
| 33 | Ball Bearing | 1 pc | 1 pc | ||
| 16 | Retaining Ring | 1 pc | 1 pc | ||
| 48 | Deflector | 1 pc | 1 pc | ||
| 53 | Needle Bearing | 1 pc | 1 pc | ||
| 55 | Ball Bearing | 1 pc | 1 pc | ||
| 56 | Retaining Ring | 1 pc | 1 pc | ||
| 57 | Retaining Ring | 1 pc | 1 pc | ||
| 63 | Plug | 02C2D27148, 33117525064, 473904E000, 6000626082, 673002349 | 1 pc | 1 pc | |
| 52 | Radial Sealing | 27107539266 | 1 pc | 1 pc | |
| 04 | Retaining Ring | 1 pc | 1 pc | ||
| 03 | Radial Sealing | 02C2D27145, 27107539262, 473524E000, 673002353 | 1 pc | 1 pc | |
| 34 | Radial Sealing | 27107546667, 673002344, A0159973446 | 1 pc | 1 pc | |
| 58 | Radial Seal Ring | 27107593452 | 1 pc | 1 pc | |
| 59 | Seal O-ring | 27107593451, 673002350, 95834150100 | 1 pc | 1 pc | |
| 02 | Retaining Ring | 1 pc | 1 pc | ||
| 20 | Spring | 3 pcs | 3 pcs | ||
| 67 | O-ring | 1 pc | 1 pc |
