Marca: Original

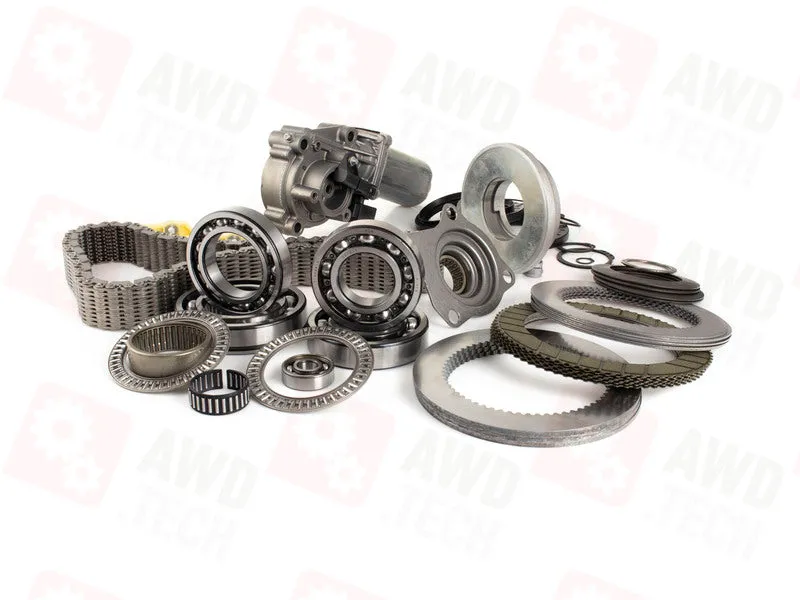

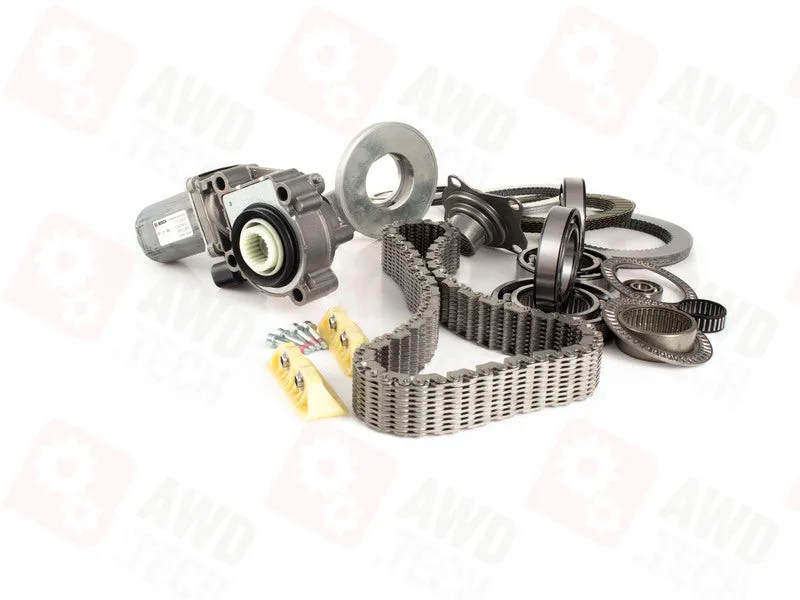

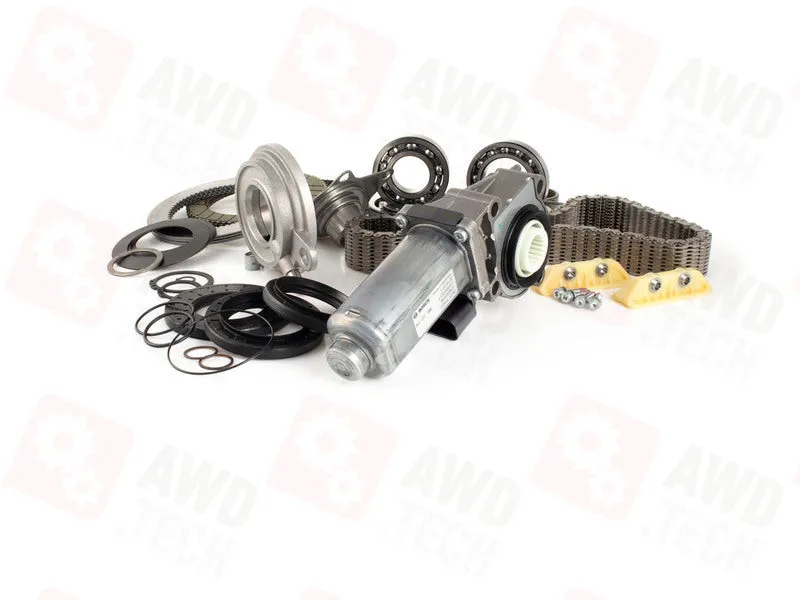

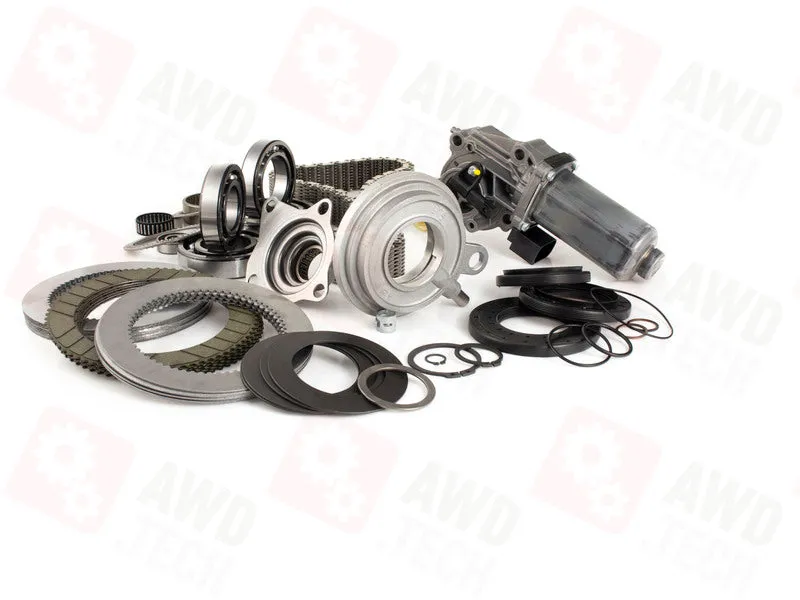

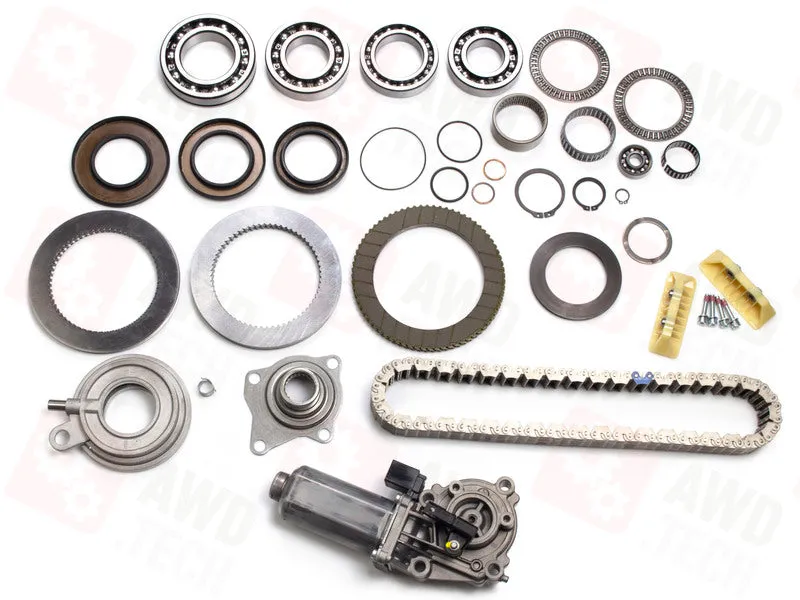

Repair Kit for ATC400 — BMW X3
Descripción
Part Name: Repair Kit
OE numbers: Not available
Repair Kit application in transmissions
ATC400 BMW
* ATC400 Transfer Case used in BMW X3 2003-2011
OE Numbers of ATC400 Transfer Case where this Repair Kit is applicable: 27100362791 27103424081 27103427762 27103428186 27103434169 27103434267 27103435185 27103435186 27103435187 27103455131 27103455132 27103455133 27103455134 27103455135 27103455136 27103455137 27103455138 27103455139 27107526278 27107535865 27107545710 27107546816 27107555293 27107555294 27107555296 27107567845 27107567846 27107573213 27107573214 27107573215 27107573216 27107573217 27107573218 27107573221 27107573222
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| K03 | Actuator Kit | 27102449709, 27107566296 | 1 pc | 1 pc | Supplied with Code Resistor |
| 01 | Radial Sealing | 02C2D27145, 27107539262, 473524E000, 673002353 | 1 pc | 1 pc | |
| 05 | Ball Bearing | 1 pc | 1 pc | ||
| 08 | Needle Bearing | 1 pc | 1 pc | ||
| 20 | Ball Bearing | 1 pc | 1 pc | ||
| 21 | Radial Sealing | 27107539265, 331401LA0A | 1 pc | 1 pc | |
| 24 | O-ring | 27107537631 | 1 pc | 1 pc | |
| 26 | Retaining Ring | 27107539525, 331381LA0A, 6000626080, 673002348 | 1 pc | 1 pc | |
| 27 | Retaining Ring | 1 pc | 1 pc | ||
| 28 | Ball Bearing | 1 pc | 1 pc | ||
| 31 | O-ring | 1 pc | 1 pc | ||
| 32 | Needle Sleeve | 1 pc | 1 pc | ||
| 35 | Washer Sealing | 07119963308, 88896062, LR048842 | 2 pcs | 2 pcs | |
| 38 | Thrust Washer | 1 pc | 1 pc | ||
| 39 | Ball Bearing | 1 pc | 1 pc | ||
| 40 | Chain | HV086 | 1 pc | 1 pc | |
| 42 | Ball Bearing | 1 pc | 1 pc | ||
| 43 | O-ring | 27107537630 | 1 pc | 1 pc | |
| 47 | Radial Sealing | 27107539266 | 1 pc | 1 pc | |
| 53 | Sliding Block | 2 pcs | 2 pcs | ||
| 54 | Screw | 4 pcs | 4 pcs | ||
| 70 | Needle Sleeve | 1 pc | 1 pc | ||
| 72 | Needle Ring Axial | 2 pcs | 2 pcs | ||
| 77 | Dish Spring | 4 pcs | 4 pcs | ||
| 78 | Shim Set | 1 pc | 1 pc | Contains Shim Dimensions 3.40, 3.60, 3.80 | |
| 82 | Retaining Ring | 1 pc | 1 pc | ||
| 83 | Needle Bearing | 1 pc | 1 pc | ||
| 90 | Oil Pump | 1 pc | 1 pc | ||
| 91 | Clamp | 1 pc | 1 pc | ||
| 79 | Torque Transfer Shim | 6 pcs | 6 pcs | ||
| 80 | Steel Plate | 7 pcs | 7 pcs |
