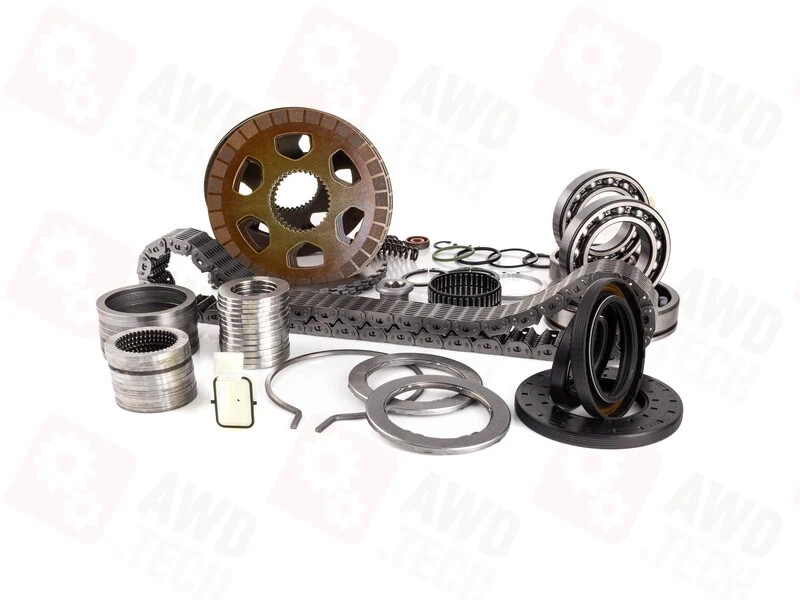

Repair Kit for ATC45L — BMW X3, X4, X5, X6
Descripción
Part Name: Repair Kit
OE numbers: Not available
Repair Kit application in transmissions
ATC45L BMW
* ATC45L Transfer Case used in BMW X5 2012-..., X6 2012-..., X3 2012-..., X4 2012-..., X5 M 2014-..., X6 M 2014-...
OE Numbers of ATC45L Transfer Case where this Repair Kit is applicable: 27105A371E0 27105A371E1 27105A371E2 27105A371E3 27105A371E4 27105A4A0B9 27105A4A0C0 27105A4A0C1 27105A4A0C2 27105A4A0C3 27107505376 27107505377 27107619644 27107619645 27107619646 27107629177 27107629178 27107629179 27107636180 27107636444 27107636445 27107636487 27107636488 27107636489 27107639265 27107639273 27107639274 27107643758 27107643759 27107643760 27107649182 27107649784 27107852166 27107854164 27108604770 27108604771 27108612554 27108612555 27108623348 27108623349 27108643151 27108643152 27108697255 27108697256 27108697257

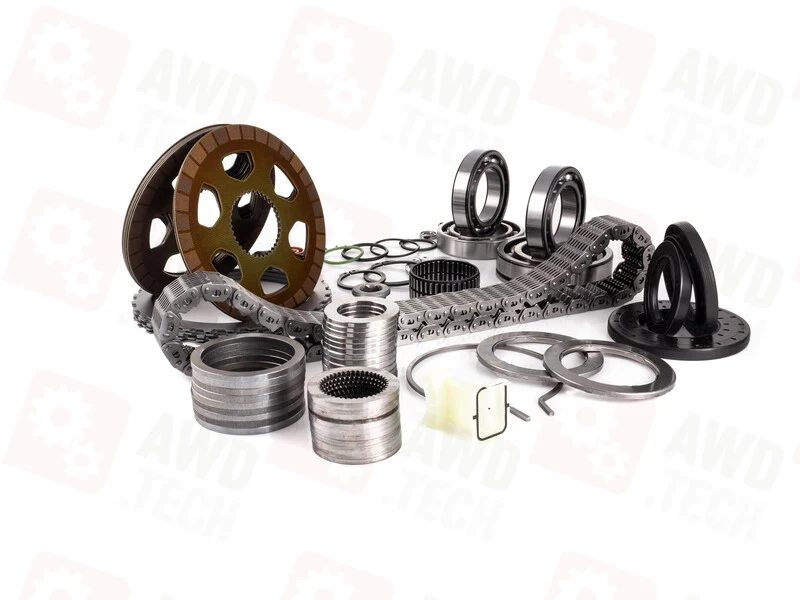

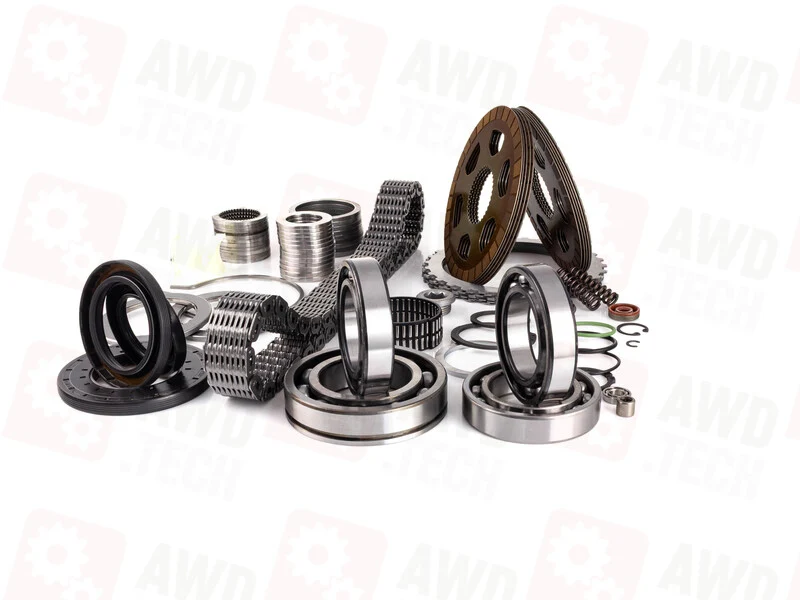

Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|

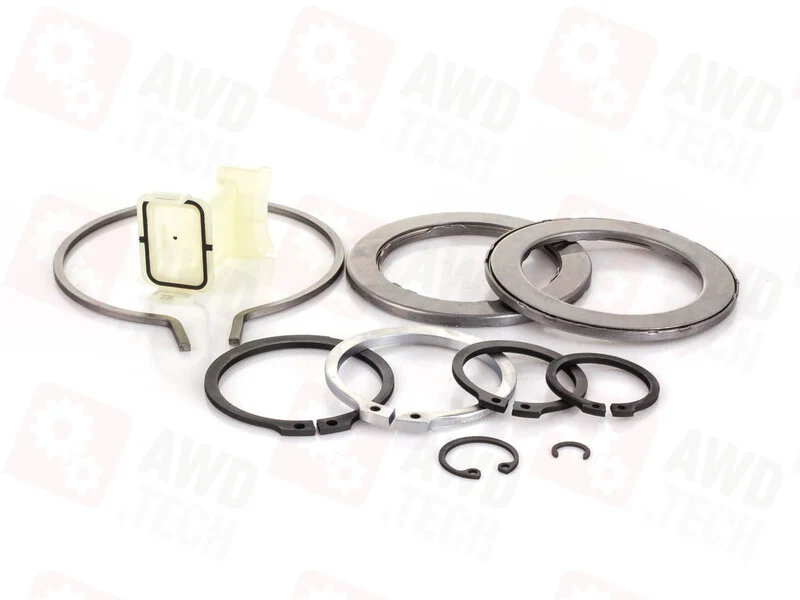

| 38 | Retaining Ring | 27107539525, 331381LA0A, 6000626080, 673002348 | 1 pc | 1 pc | |
| 01 | O-ring | 02C2D27326, 27107609202 | 1 pc | 1 pc | |
| 02 | Retaining Ring | 1 pc | 1 pc | ||

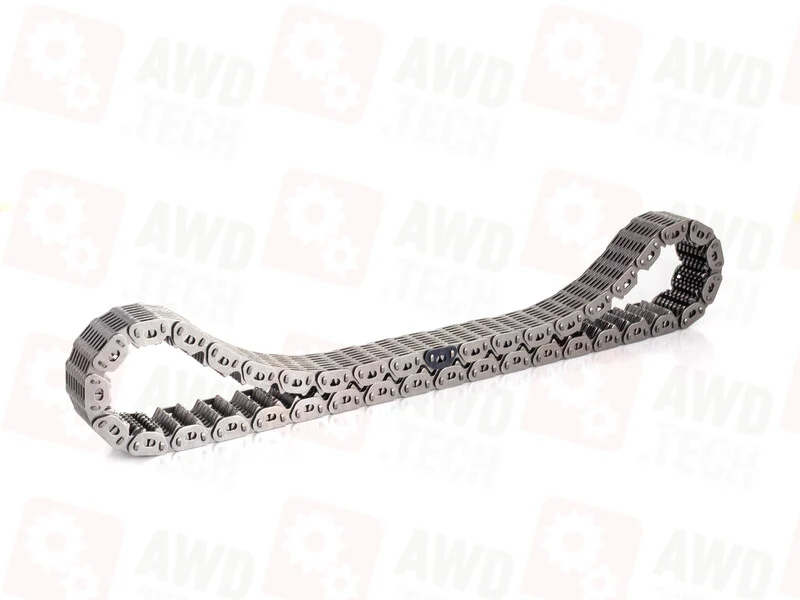

| 11 | Chain | 1 pc | 1 pc | ||
| 30 | Retaining Ring | 1 pc | 1 pc | ||

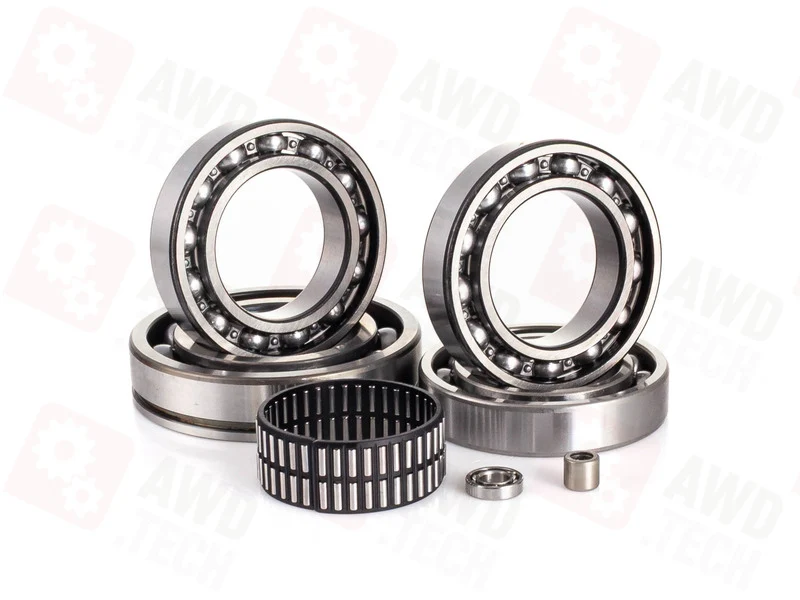

| 05 | Ball Bearing | 1 pc | 1 pc | ||
| 12 | Needle Bearing | 1 pc | 1 pc | ||
| 16 | Retaining Ring | 1 pc | 1 pc | ||
| 63 | Plug | 02C2D27148, 33117525064, 473904E000, 6000626082, 673002349 | 1 pc | 1 pc | |

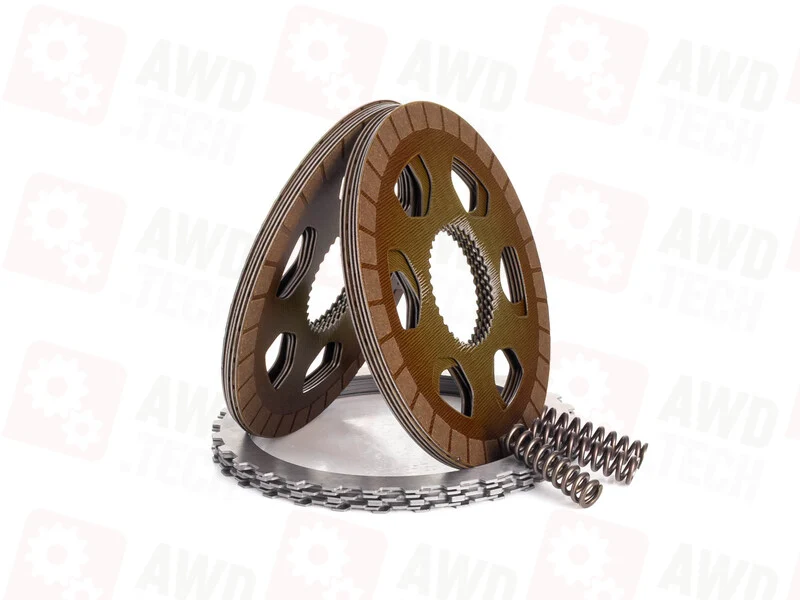

| 18 | Friction Plate | 10 pcs | 10 pcs | ||
| 19 | Steel Plate | 9 pcs | 9 pcs | ||
| 24 | Needle Bearing | 2 pcs | 2 pcs | ||

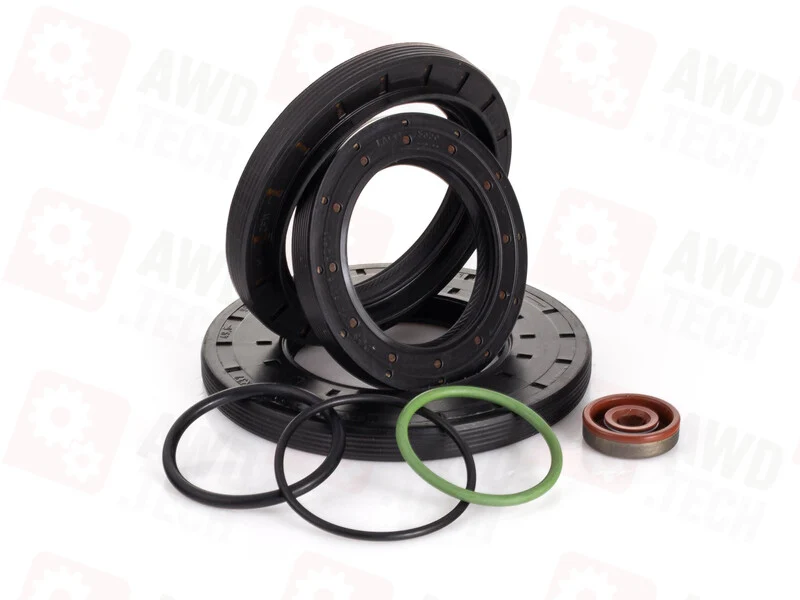

| 03 | Radial Sealing | 02C2D27145, 27107539262, 473524E000, 673002353 | 1 pc | 1 pc | |
| 33 | Ball Bearing | 3 pcs | 3 pcs | ||
| 48 | Deflector | 1 pc | 1 pc | ||
| 52 | Radial Seal Ring | 27107623527 | 1 pc | 1 pc | |
| 53 | Needle Bearing | 1 pc | 1 pc | ||
| 55 | Ball Bearing | 1 pc | 1 pc | ||
| 56 | Retaining Ring | 1 pc | 1 pc | ||
| 57 | Retaining Ring | 1 pc | 1 pc | ||

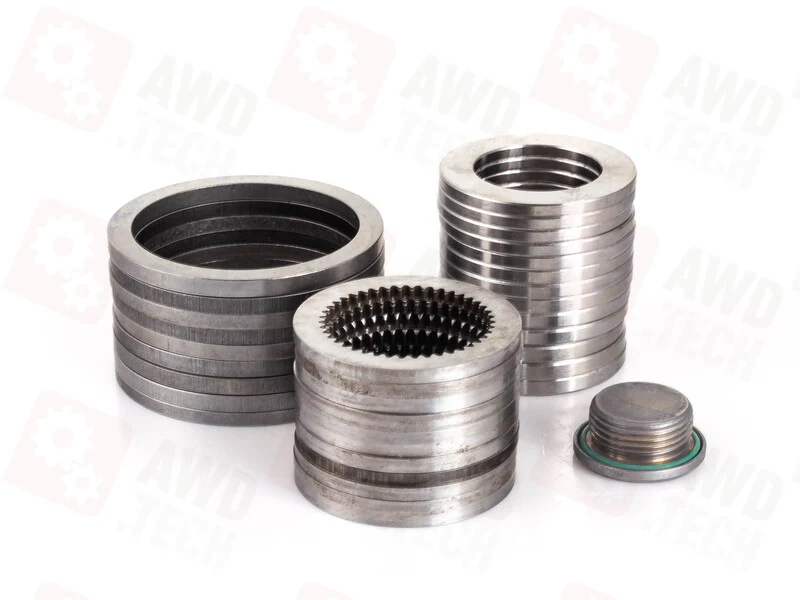

| K20 | Shim Set | 27107546670 | 1 pc | 1 pc | Contains 13 different Shims with Dimensions from 2.90mm up to 4.10mm |
| 34 | Radial Sealing | 27107546667, 673002344, A0159973446 | 1 pc | 1 pc | |
| 58 | Radial Seal Ring | 27107593452 | 1 pc | 1 pc | |
| 59 | Seal O-ring | 27107593451, 673002350, 95834150100 | 1 pc | 1 pc | |
| 37 | Seal O-ring | 27107599326, 6000626079, 673002346 | 1 pc | 1 pc | |
| 14 | Thrust Washer | 1 pc | 1 pc | ||
| 04 | Retaining Ring | 1 pc | 1 pc | ||
| 20 | Spring | 3 pcs | 3 pcs | ||
| K37 | Shim Set | 1 pc | 1 pc | Contains position 29 Contains 11 different Shims with Dimensions from 2.60mm up to 3.60mm | |
| K38 | Shim Set | 1 pc | 1 pc | Contains position 15 Contains 9 different Shims with Dimensions from 3.40mm up to 4.20mm |
