Marca: Original

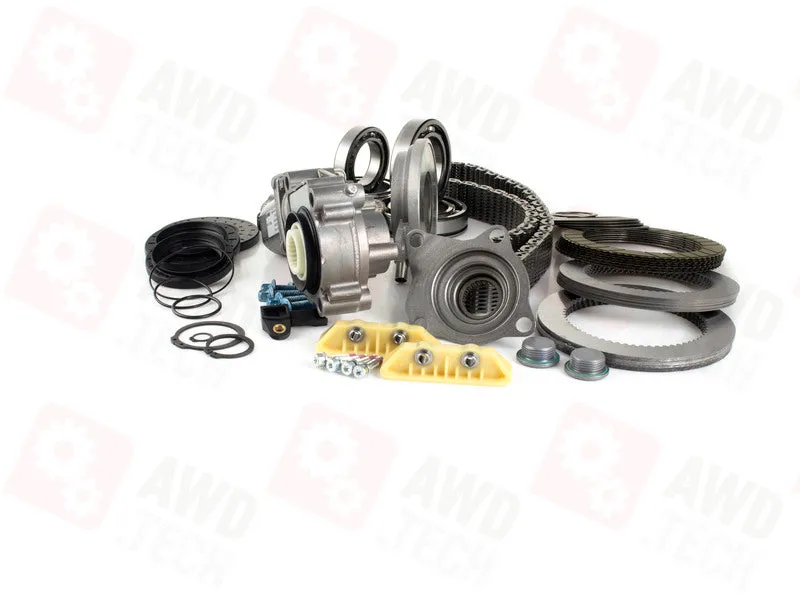

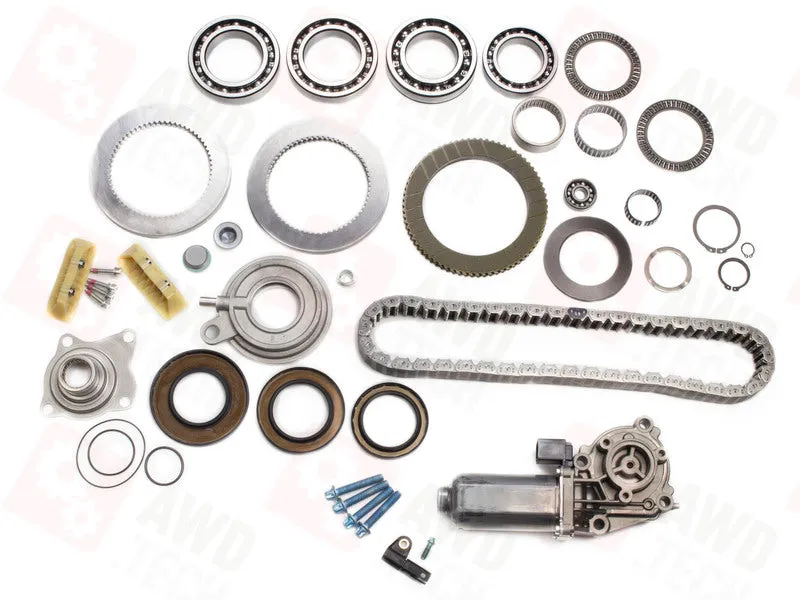

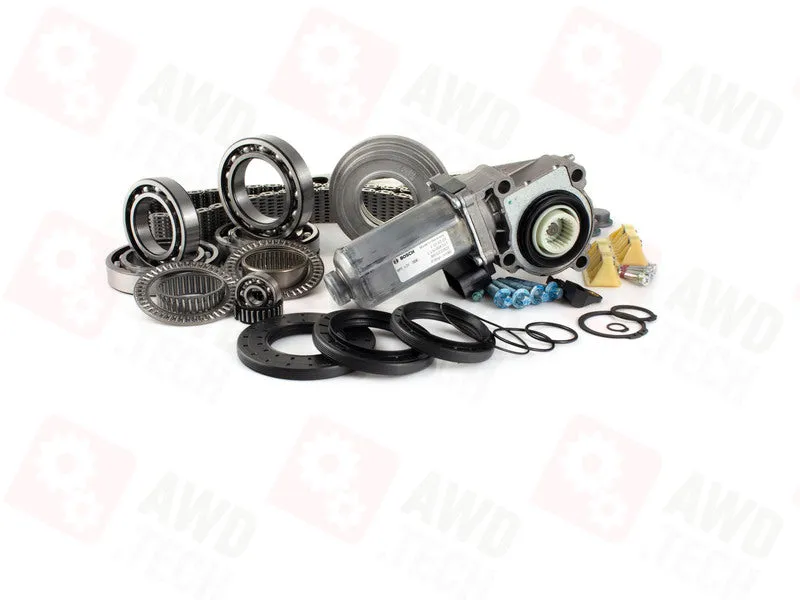

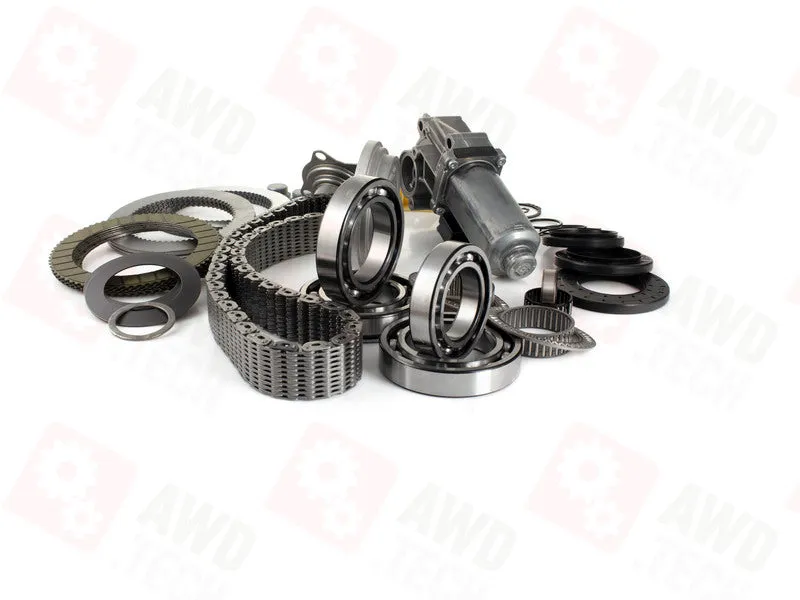

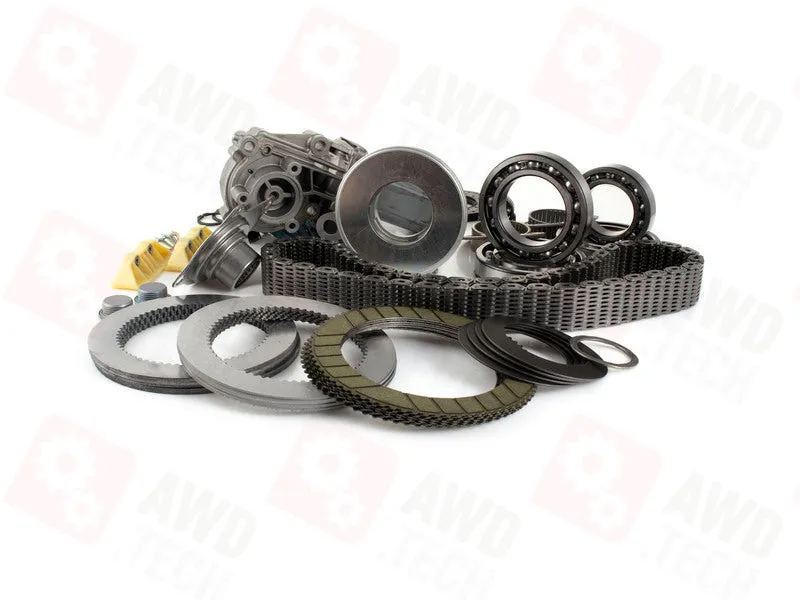

Repair Kit for ATC700 — BMW X5, X6
Descripción
Part Name: Repair Kit
OE numbers: Not available
Repair Kit application in transmissions
ATC700 BMW
* ATC700 Transfer Case used in BMW X5 2006-2014, X6 2006-2014
OE Numbers of ATC700 Transfer Case where this Repair Kit is applicable: 27107556249 27107566252 27107566253 27107567644 27107568233 27107574777 27107574778 27107574825 27107574826 27107590868 27107599886 27107599887 27107599889 27107599890 27107599898 27107599899
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| K03 | Actuator Kit | 27102449709, 27107568267 | 1 pc | 1 pc | Supplied with Code Resistor |
| 01 | Radial Sealing | 02C2D27145, 27107539262, 473524E000, 673002353 | 1 pc | 1 pc | |
| 05 | Ball Bearing | 1 pc | 1 pc | ||
| 08 | Needle Bearing | 1 pc | 1 pc | ||
| 20 | Ball Bearing | 1 pc | 1 pc | ||
| 21 | Radial Sealing | 27107539265, 331401LA0A | 1 pc | 1 pc | |
| 24 | O-ring | 27107537631 | 1 pc | 1 pc | |
| 26 | Retaining Ring | 27107539525, 331381LA0A, 6000626080, 673002348 | 1 pc | 1 pc | |
| 27 | Retaining Ring | 1 pc | 1 pc | ||
| 28 | Ball Bearing | 1 pc | 1 pc | ||
| 31 | O-ring | 1 pc | 1 pc | ||
| 32 | Needle Sleeve | 1 pc | 1 pc | ||
| 34 | Plug | 02C2D27148, 33117525064, 473904E000, 6000626082, 673002349 | 2 pcs | 2 pcs | |
| 38 | Thrust Washer | 1 pc | 1 pc | ||
| 39 | Ball Bearing | 2 pcs | 2 pcs | ||
| 40 | Chain | 1 pc | 1 pc | ||
| 43 | O-ring | 27107537630 | 1 pc | 1 pc | |
| 47 | Radial Sealing | 27107539266 | 1 pc | 1 pc | |
| 53 | Sliding Block | 2 pcs | 2 pcs | ||
| 54 | Screw | 4 pcs | 4 pcs | ||
| 70 | Needle Sleeve | 1 pc | 1 pc | ||
| 72 | Needle Ring Axial | 2 pcs | 2 pcs | ||
| 77 | Dish Spring | 4 pcs | 4 pcs | ||
| 78 | Shim Set | 1 pc | 1 pc | Contains Shim Dimensions 3.40, 3.60, 3.80 | |
| 82 | Retaining Ring | 1 pc | 1 pc | ||
| 83 | Needle Bearing | 1 pc | 1 pc | ||
| 90 | Oil Pump | 1 pc | 1 pc | ||
| 91 | Clamp | 1 pc | 1 pc | ||
| 79 | Torque Transfer Shim | 7 pcs | 7 pcs | Only available in K00 & K18 | |
| 80 | Steel Plate | 8 pcs | 8 pcs | Only available in K00, K18, K19 |
