Marca: Original

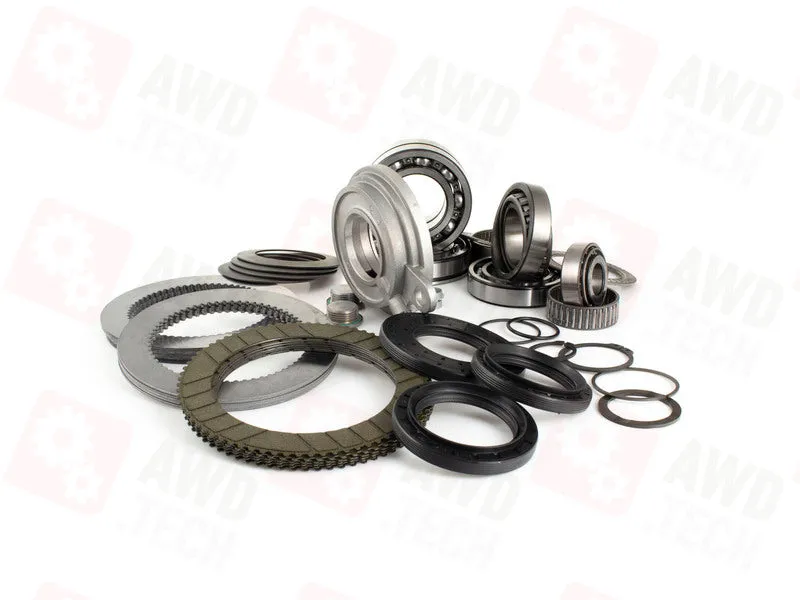

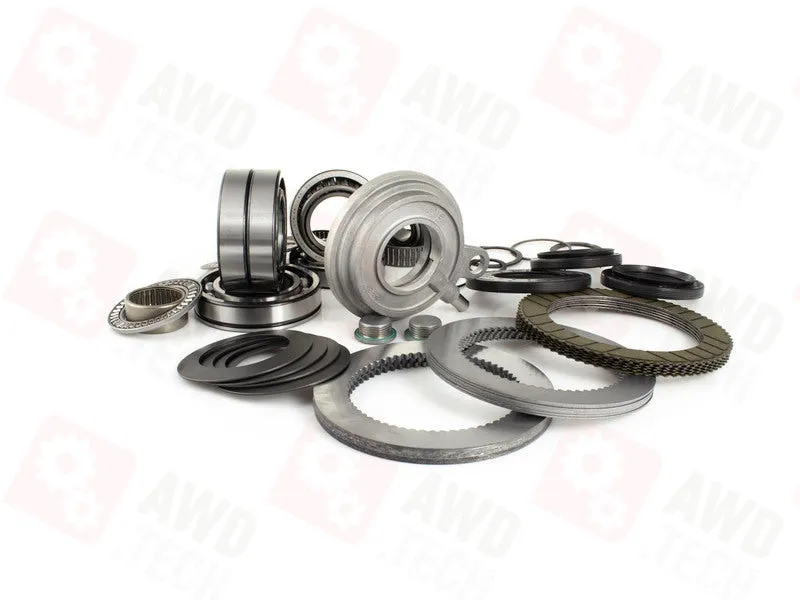

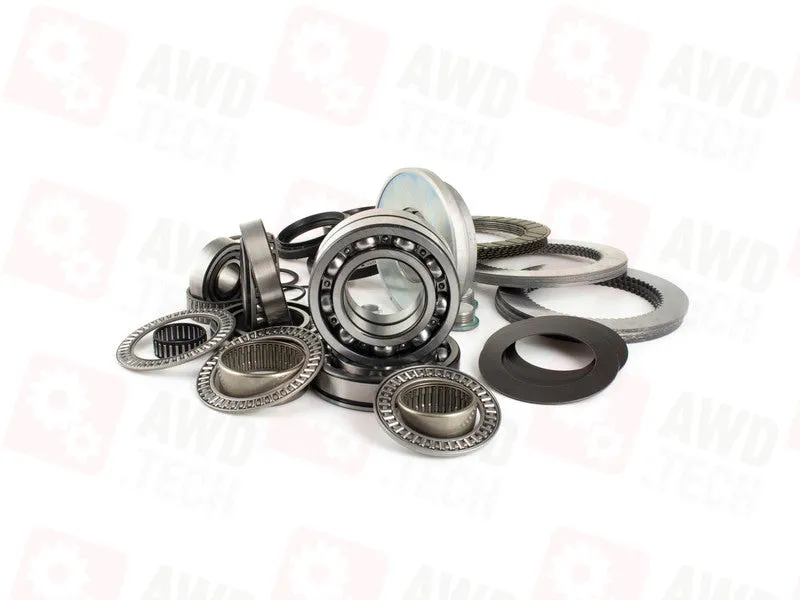

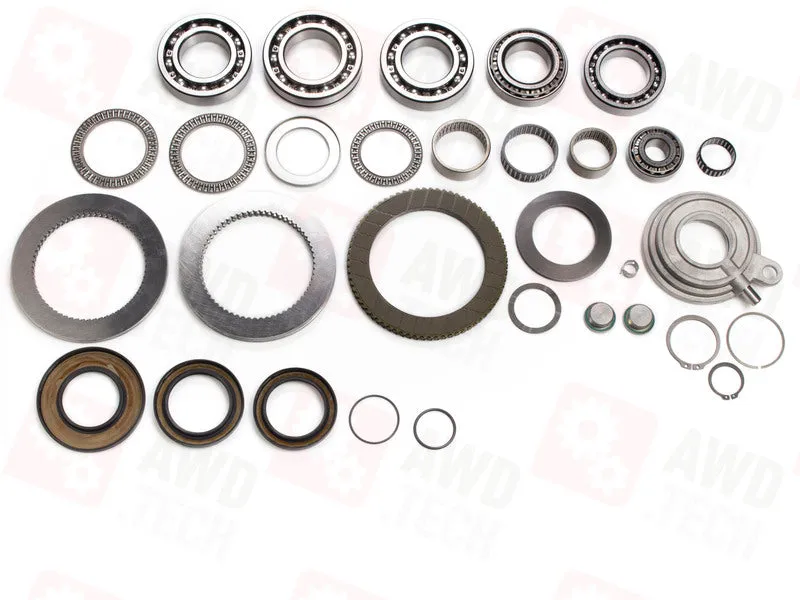

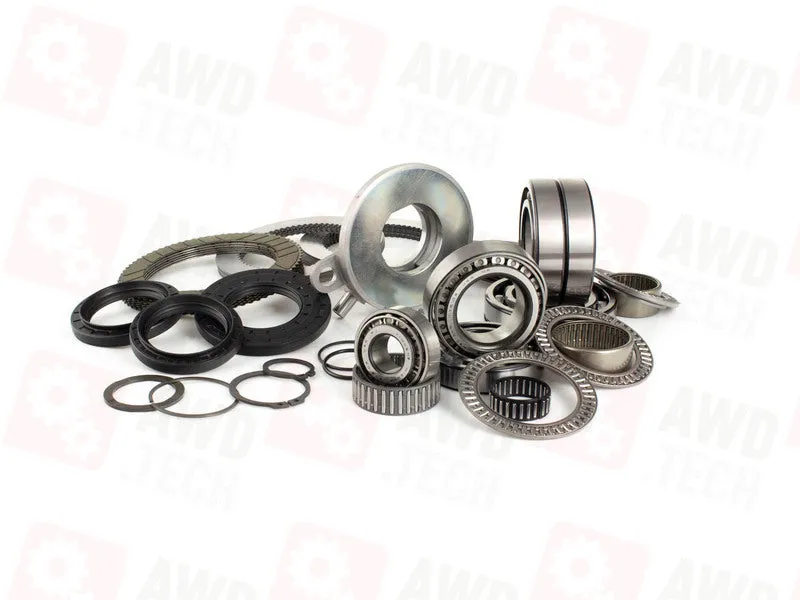

Standard Repair Kit W/o Actuator for ATC300 — BMW 3, 5
Descripción
Part Name: Standard Repair Kit W/O Actuator
OE numbers: Not available
Standard Repair Kit W/O Actuator application in transmissions
ATC300 BMW
* ATC300 Transfer Case used in BMW 3 2004-2013, 5 2004-2013
OE Numbers of ATC300 Transfer Case where this Standard Repair Kit W/O Actuator is applicable: 27107546677 27107548666 27107549030 27107552701 27107599690 27107599691 27107599693 27107613152 27107613153
Included items (what you get):
| № in the schema | Name | OE Numbers | Required Quantity | Quantity per item for sale | Notes |
|---|---|---|---|---|---|
| 01 | Radial Sealing | 02C2D27145, 27107539262, 473524E000, 673002353 | 1 pc | 1 pc | |
| 09 | Needle Bearing | 1 pc | 1 pc | ||
| 12 | Thrust Washer | 1 pc | 1 pc | ||
| 18 | Ball Bearing | 1 pc | 1 pc | ||
| 20 | Radial Sealing | 27107546667, 673002344, A0159973446 | 1 pc | 1 pc | |
| 35 | Taper Roller Bearing | 1 pc | 1 pc | ||
| 40 | Radial Sealing | 27107539266 | 1 pc | 1 pc | |
| 46 | Snap Ring | 1 pc | 1 pc | ||
| 50 | Needle Bearing | 1 pc | 1 pc | ||
| 70 | Needle Sleeve | 1 pc | 1 pc | ||
| 72 | Needle Ring Axial | 2 pcs | 2 pcs | ||
| 77 | Dish Spring | 4 pcs | 4 pcs | ||
| 78 | Shim Set | 1 pc | 1 pc | Contains Shim Dimensions 3.40, 3.60, 3.80 | |
| 79 | Torque Transfer Shim | 6 pcs | 6 pcs | ||
| 80 | Steel Plate | 7 pcs | 7 pcs | ||
| 82 | Retaining Ring | 1 pc | 1 pc | ||
| 84 | Axial Needle Roller Bearing | 1 pc | 1 pc | ||
| 90 | Oil Pump | 1 pc | 1 pc | ||
| 91 | Clamp | 1 pc | 1 pc | ||
| 03 | Ball Bearing | 1 pc | 1 pc | ||
| 07 | O-ring | 27107537630 | 1 pc | 1 pc | |
| 23 | Retaining Ring | 27107539525, 331381LA0A, 6000626080, 673002348 | 1 pc | 1 pc | |
| 29 | Taper Roller Bearing | 1 pc | 1 pc | ||
| 39 | Plug | 02C2D27148, 33117525064, 473904E000, 6000626082, 673002349 | 2 pcs | 2 pcs | |
| 43 | Ball Bearing | 2 pcs | 2 pcs | ||
| 49 | O-ring | 27107537631 | 1 pc | 1 pc | |
| 83 | Needle Bearing | 1 pc | 1 pc |
