TC004

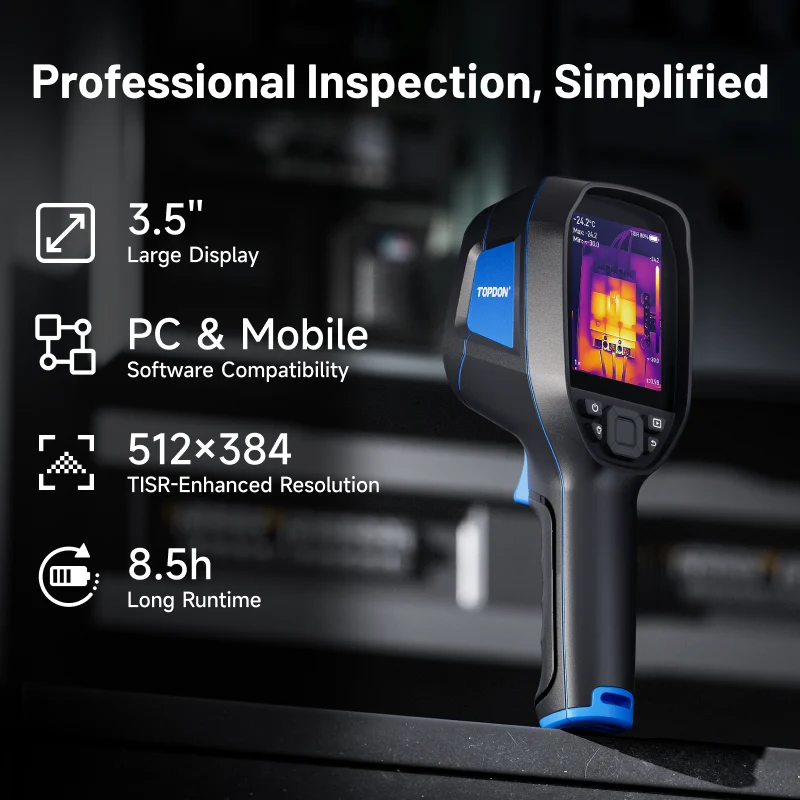

The TC004 is a professional thermal inspection tool built for fast, everyday jobsite use. Its 3.5-inch display and TISR-supported imaging deliver clear thermal visuals, while built-in WiFi enables a streamlined workflow for electrical, building, and mechanical inspections.

Features

Large Display. Clear Decisions.

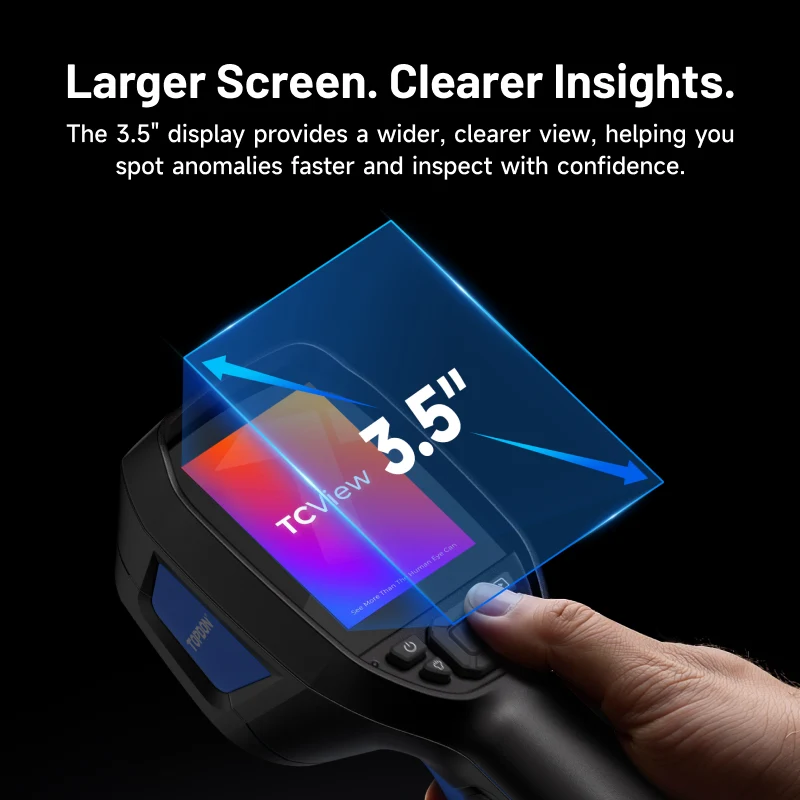

• The TC004 features a 3.5-inch display that provides a wider and more comfortable viewing experience, making it easier to identify hotspots and temperature differences during daily inspections.

Sharp, Clear Thermal Images

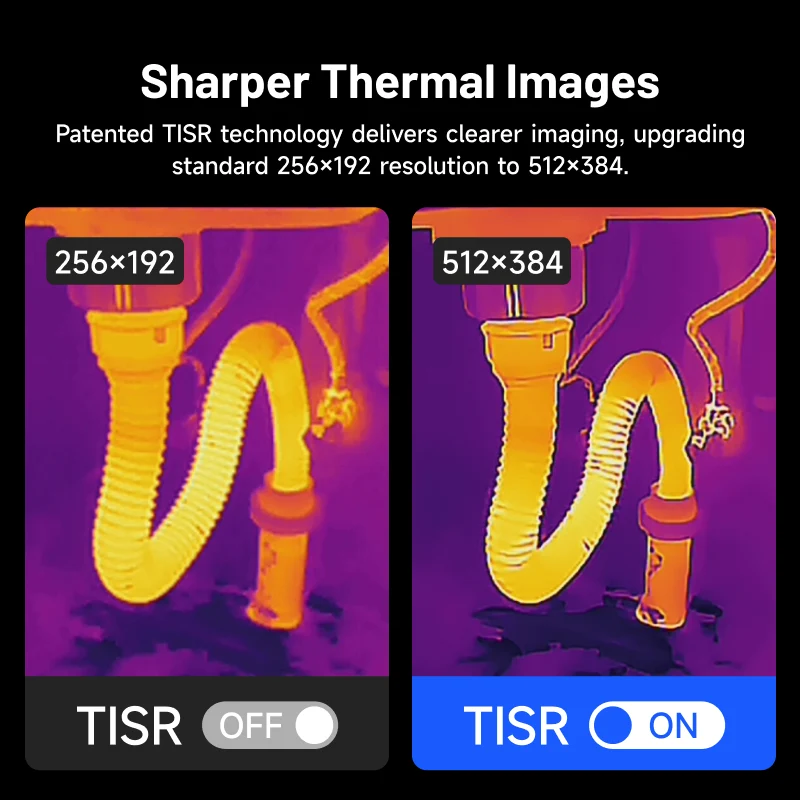

• With a 256×192 infrared resolution (TISR-enhanced up to 512×384), the TC004 captures detailed thermal images that help you detect temperature variations and make confident decisions on the first pass.

Laser Pinpointed Inspection Accuracy

• A built-in red laser pointer marks the measurement area, making it easier to align thermal images with the actual target and locate anomalies during inspections.

Expanded Storage for Thorough Documentation

• Equipped with 64GB of built-in storage, the TC004 allows you to store thousands of images and videos, supporting thorough documentation throughout the workday without interruptions.

Flexible Connectivity for Fast Reporting

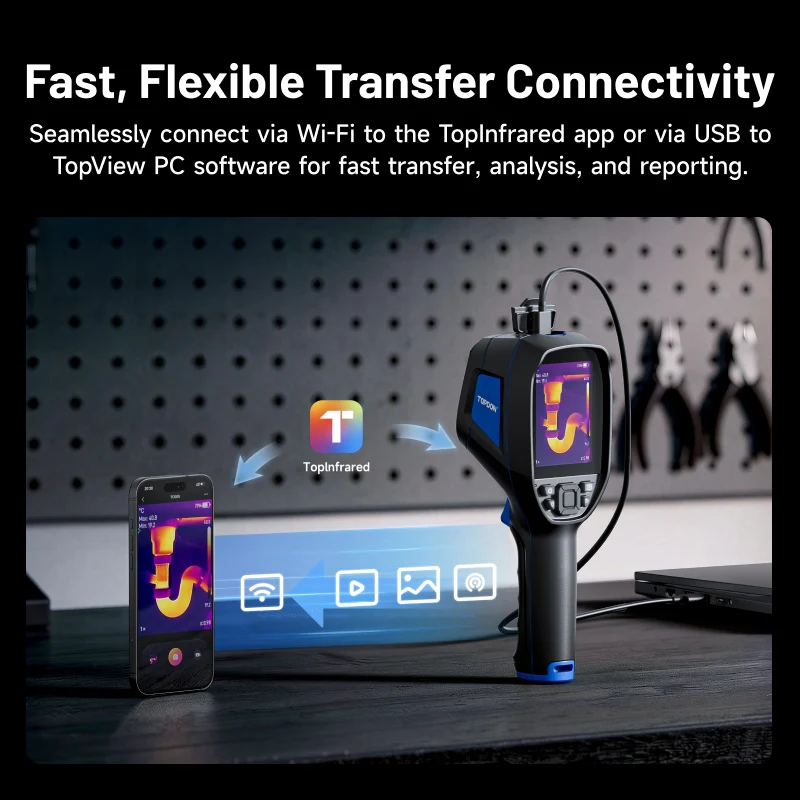

• Integrated Wi-Fi connects to the TopInfrared mobile app, while a USB connection supports file transfer and analysis through TopView PC software. Sync files quickly, perform thermal analysis, and generate professional inspection reports more efficiently.

Long Runtime for Extended Inspections

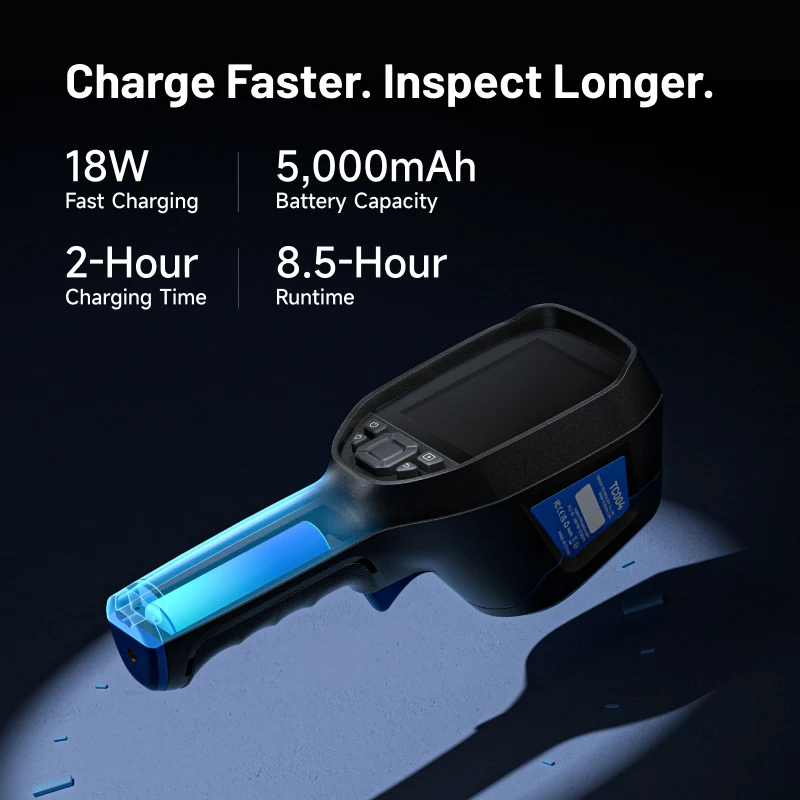

• Powered by a 5,000 mAh battery, the TC004 delivers up to 8.5 hours of continuous operation and fully recharges in just 2 hours, supporting extended inspections with minimal downtime.

Built for Demanding Inspection Environments

• Built for real-world environments, the TC004 features IP54-rated protection against dust and splashes, 2-meter drop resistance, and an integrated LED light to improve visibility in dark or confined inspection areas.

Specifications

• Infrared Resolution: 256x192

• Refresh Rate: 25 Hz

• Spectral Range: 8–14 μm

• Pixel Size: 12 um

• Thermal Sensitivity (NETD): ≤ 40 mK

• Field of View (FOV): 56° × 42°

• Instantaneous Field of View (IFOV): 3.75 mrad

• Temperature Measurement Range: -4°F to 1022°F (-20°C to 550°C)

• Measurement Accuracy: ±2°C or ±2% of reading (whichever is greater)

• Temperature Resolution: 0.1°C

• Internal Storage: 64 GB eMMC

• Battery Capacity: 5,000 mAh

• Operating Time: Up to 8.5 hours

• Software Compatibility: TopInfrared (Mobile), TopView (PC)


Packing List

• TC004

• Universal Travel Adapter

• USB Cable (USB-A to USB-C)

• User Manual

• Storage Bag

• Package Box
